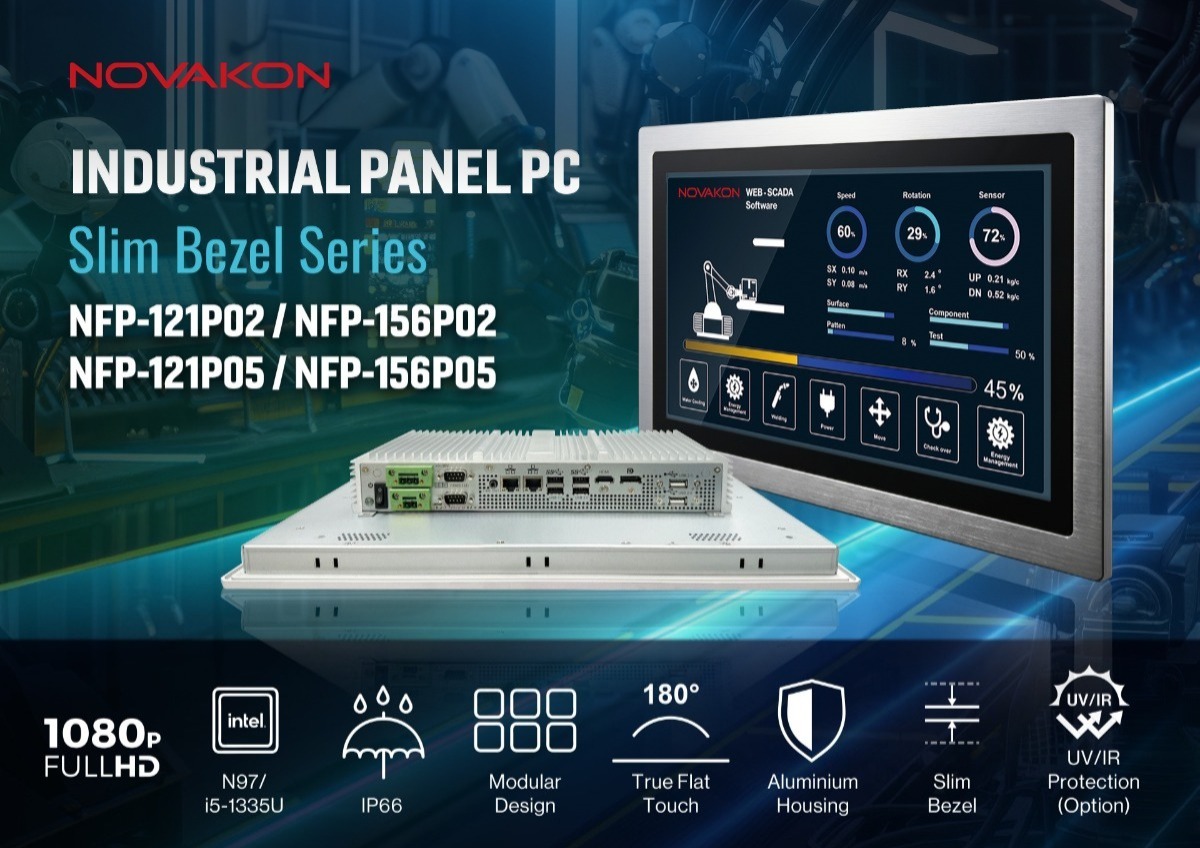

NFP-156P02 Slim Bezel Panel PC

Onboard Intel® Alder Lake-N Atom x7425E 1.5GHz, quad-core, 4 threads, (up to 3.4GHz)
15.6" Full HD 1920x1080, TFT-LCD
Resistive Touch / Projected Capacitive Touch
IP66-rated aluminum front bezel and steel chassis
2.5 GbE Ethernet ports x 2
COM port x 2 (RS-232 x 1, RS-232/422/485 x 1)
USB x 6 (2 x 3.2 Gen1, 2 x 3.2 Gen2, 2 x USB 2.0)
DC 9~36V wide range power input
VESA mounting 100x100mm / Panel mounting
Optional high brightness & UV/IR protection for outdoor applications

Request a quote

Specifications

Model	NFP-156P02
Processor	Onboard Intel® Alder Lake-N Atom x7425E 1.5GHz, quad-core, 4 threads, (up to 3.4GHz)
Memory	1 x SO-DIMM, DDR5 4800MHz, up to 16GB
Display Size	15.6" TFT-LCD
Max. Resolution	1920x1080
Luminance (cd/m²)	350 (Typ.)
Contrast	800:1 (Typ.)
Max. Color	16.7M
View Angle (H/V)	178 / 178 (Min.)
Backlight Lifetime (hrs)	50000
Touch Type	Projected Capacitive Touch
Touch Interface	USB
Light Transmission (%)	Projected Capacitive Touch: over 84%
USB 3.0	2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2
USB 2.0	2 x USB 2.0
RS-232/422/485 Selectable under BIOS	1 x DB9 (RS-232/422/485 & RI/5V/12V)
RS-232	1 x DB9 (RS-232)
HDMI 2.0	1
Display Port	1
LAN	2 x 2.5GbE
Audio	1 x Line Out
Net Weight (kgs)	5.2
Power Input Range	DC 9~36V
Power Consumption	90W
IP Rating	Front Panel IP66
Mounting	Panel Mount / VESA Mount
Operating Temperature	0~50° C (32~122° F)
Storage Temperature	-20~60° C (-4~140° F)
Certification	CE / FCC CLASS A
Operating System Support	Windows 10 IoT, Windows 11 IoT, Debian 11
Dimensions (mm)	418(W) x 268(H) x 74.4(D)
